H2S Scrubber + Thermal Oxidizer: How Envent Safely Handled 500,000 ppm Sour Water in a 2025 Washington Turnaround
When a Puget Sound refinery kicked off a major 2025 turnaround, one tank immediately became the biggest headache: a sour water stripper tank loaded with 500,000 ppm (50%) H₂S. An efficient H2S Scrubber was vital to handle this challenge.
To make matters worse, hundreds of workers were only feet away, temperatures were dropping below 20 °F, and Washington’s strict 2025 air rules left zero room for error.
Fortunately, Envent responded in hours with the perfect combination: a **heated H₂S scrubber (ESCRUB-1000) followed by a high-capacity thermal oxidizer (EMTOS-3500). The result? Zero odors, zero safety evacuations, zero PSCAA complaints — and the turnaround stayed on schedule.
Project At A Glance – H2S Scrubber Success
- Location: Puget Sound Refinery, Washington
- Challenge: 500,000 ppm H₂S sour water tank during full plant turnaround

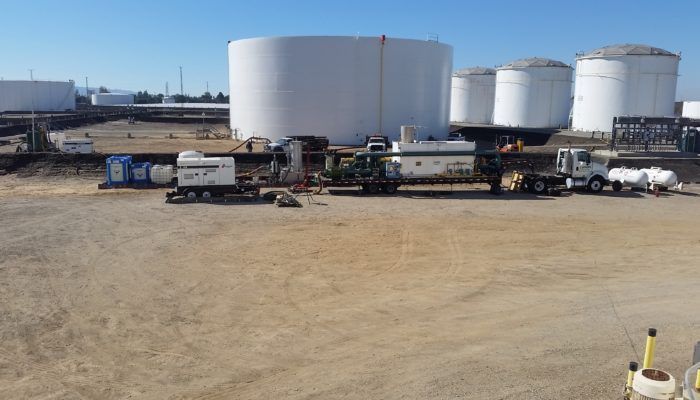

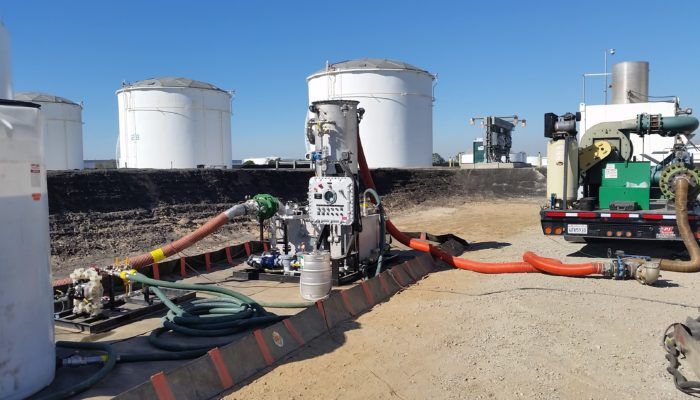

- Solution:Heated H2S Scrubber ESCRUB-1000 + EMTOS-3500 Thermal Oxidizer (video)
- Outcome: >99% H₂S removal, >99.9% destruction, full PSCAA Reg II BACT compliance in freezing weather
Why This H2S Scrubber Project Was Extremely High-Risk
First, H₂S levels were 25,000 times higher than OSHA’s 20 ppm limit — deadly within minutes above 700 ppm. Next, the tank sat in the middle of an active work zone with welders and scaffolders everywhere. Then came the weather: Puget Sound winter nights dropped to 20 °F, which normally freezes caustic in standard scrubbers and shuts projects down. Finally, 2025 regulations were unforgiving:
- PSCAA Regulation II – Toxic Air Pollutants & BACT
- Washington Refinery GHG Rules (WAC 173-415)
- EPA Refinery MACT / NESHAP Subpart CC
Any uncontrolled release would trigger immediate reporting and fines up to $100,000 per day.
How Envent’s H2S Scrubber + Thermal Oxidizer System Worked Perfectly
Because every minute mattered, Envent secured the PSCAA Notice of Construction (NOC) permit fast and mobilized within hours. Here’s exactly how the system performed:
| Step | Equipment & Technology | Real-World Performance |
|---|---|---|
| Primary H₂S Knockdown | Heated H2S Scrubber – ESCRUB-1000 | Dropped 500,000 ppm → <1,000 ppm (>99% removal) |
| Winter-Proof Design | Electric heat tracing + antifreeze + insulated tanks | Zero freeze-ups even at 20 °F |
| Final Destruction | EMTOS-3500 Mobile Thermal Oxidizer | >99.9% destruction of residual H₂S, VOCs & odors |
| Proof of Compliance | Real-time H₂S analyzers + EPA Method 15 stack testing | Instant documentation for PSCAA & refinery records |
Thanks to heated lines, hot caustic recirculation, and 24/7 monitoring, the H₂S scrubber and thermal oxidizer ran flawlessly from the first purge to the final sweep — even during the coldest nights.
Results That Speak for Themselves
| Benefit | What Actually Happened |
|---|---|
| H₂S & Odor Control | 100% odor-free – zero community or PSCAA complaints |
| Safety | Ambient H₂S stayed <10 ppm – full crew access, no evacuations |
| Regulatory Compliance | Met every PSCAA Reg II BACT and EPA MACT requirement |
| Cold-Weather Reliability | Saved 3+ days vs. traditional systems that would have frozen |
| Cost Avoidance | Prevented $150,000+ in turnaround delays |
This remains one of the most successful H₂S scrubber + thermal oxidizer projects ever completed under Washington’s toughest 2025 air regulations.
